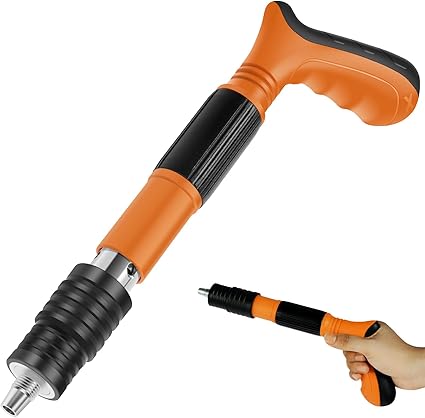

Steel Mini Nail Wall Fastening Tool

Operating instructions

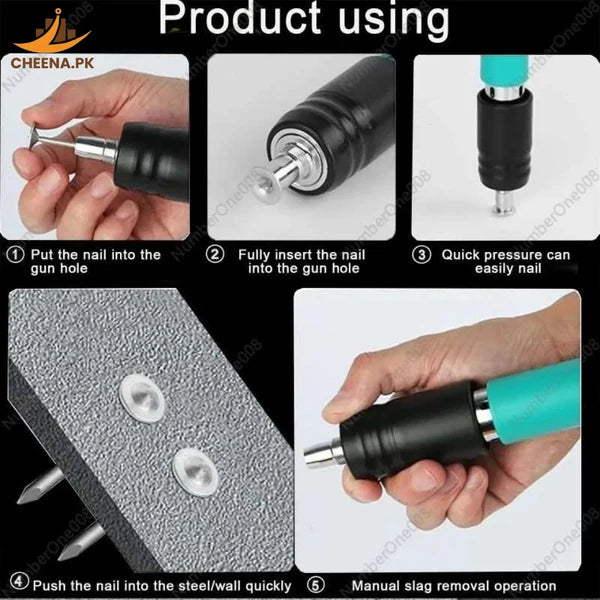

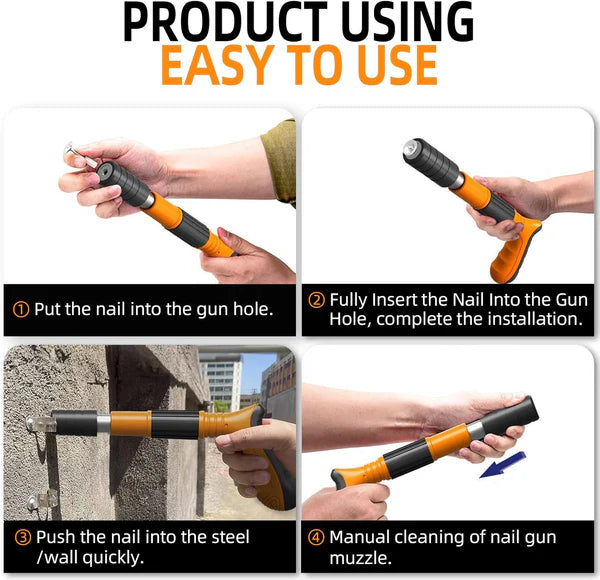

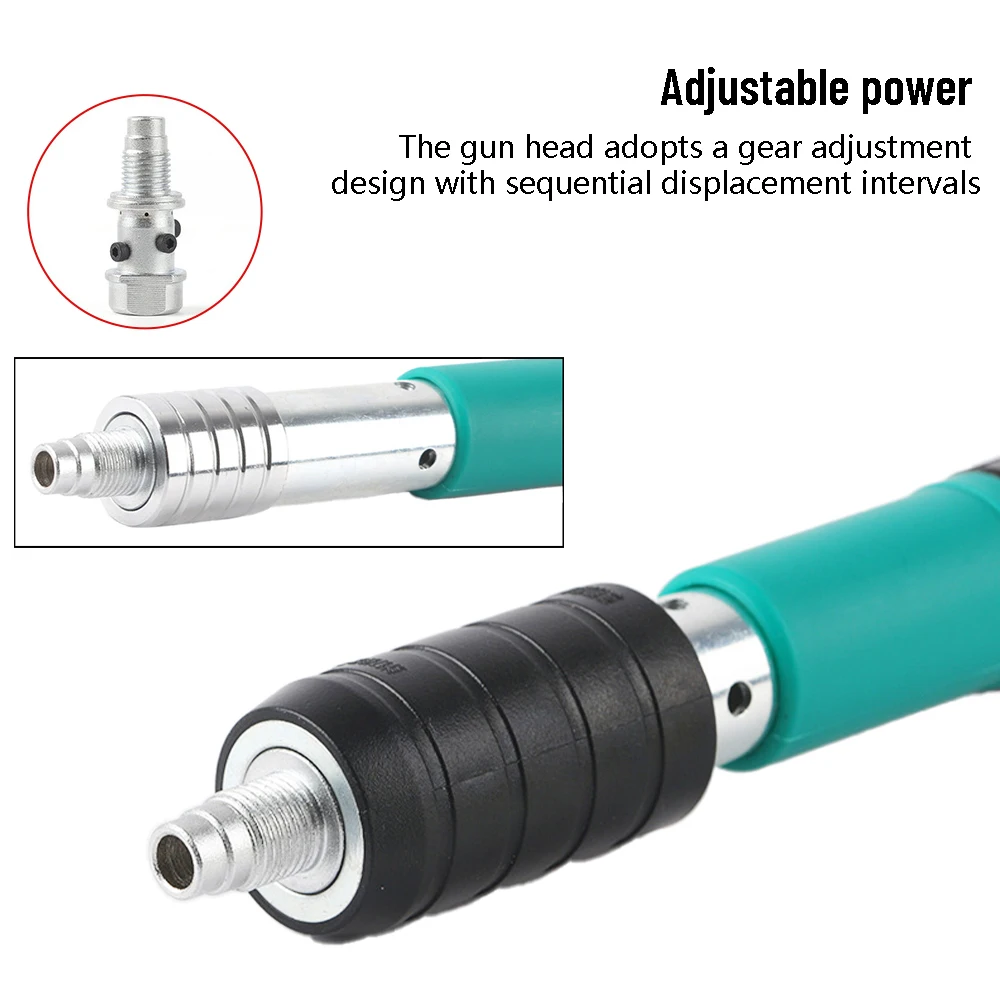

① : Take out the nail gun head, install the connecting rod according to the required height, and install the dust cover

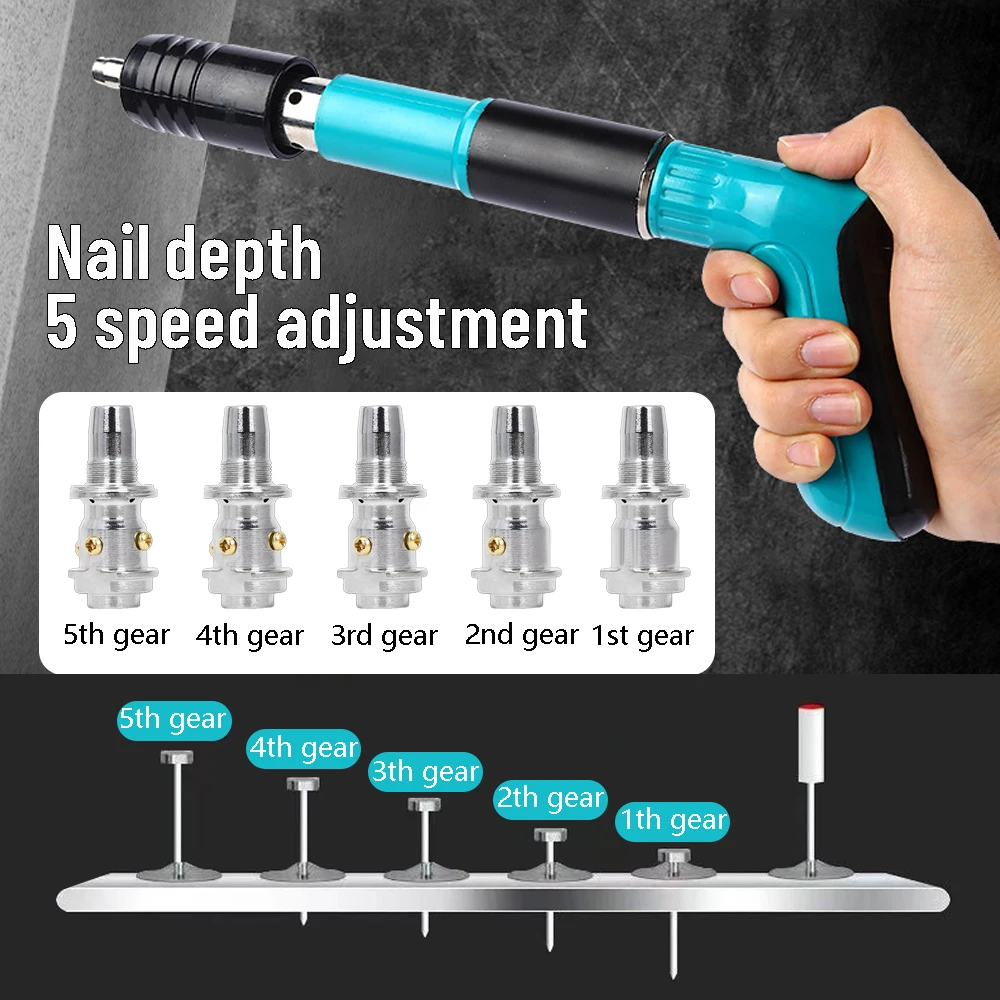

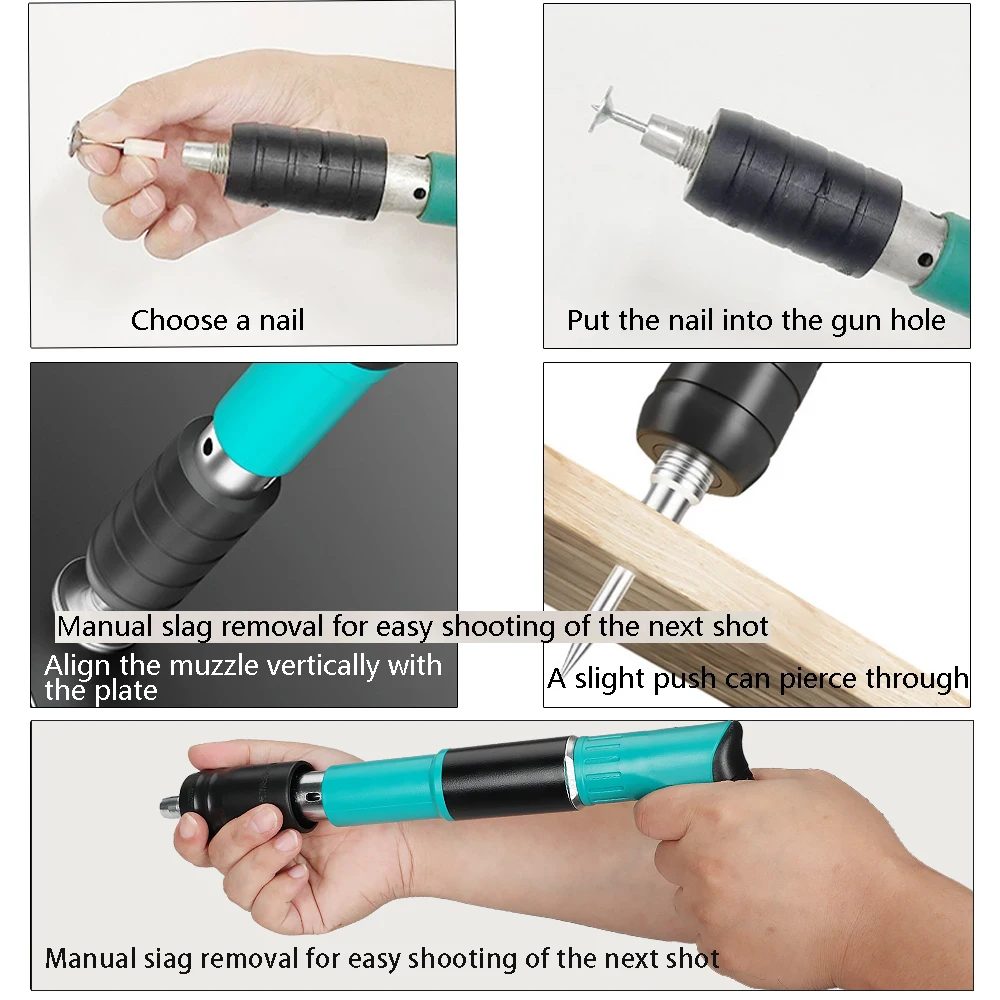

② : Take out the nails used, tilt the nail gun upwards by 45 degrees (it is strictly prohibited to have the gun mouth facing people), and install the nails. When installing, the nail tip should be facing outward, and ensure that the nails are installed to the specified depth (referring to the fact that the back end of the nails is completely buried in the gun body, except for the 42 fire nails).

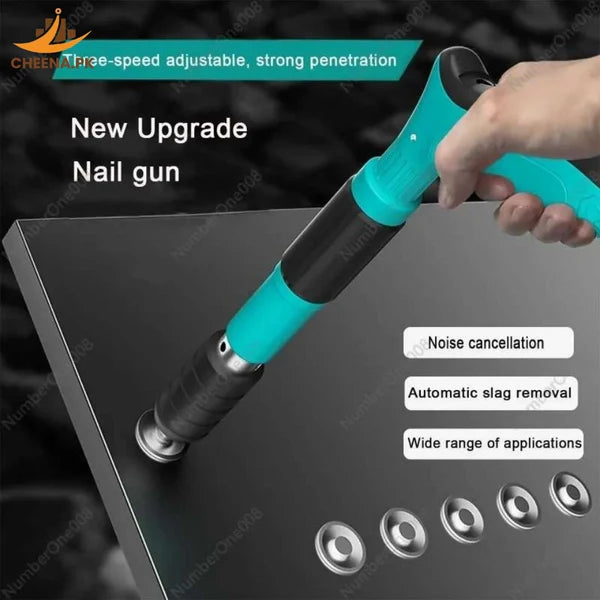

③ : Press the muzzle tightly towards the fastening position of the nail, hold the rod vertically, and push the nail vertically to drive the nail.

④：After the nailing is completed, tilt the gun head upwards by 45 degrees and retract the nail (it is strictly prohibited to use the gun mouth towards people). maintenance

Cleaning cycle

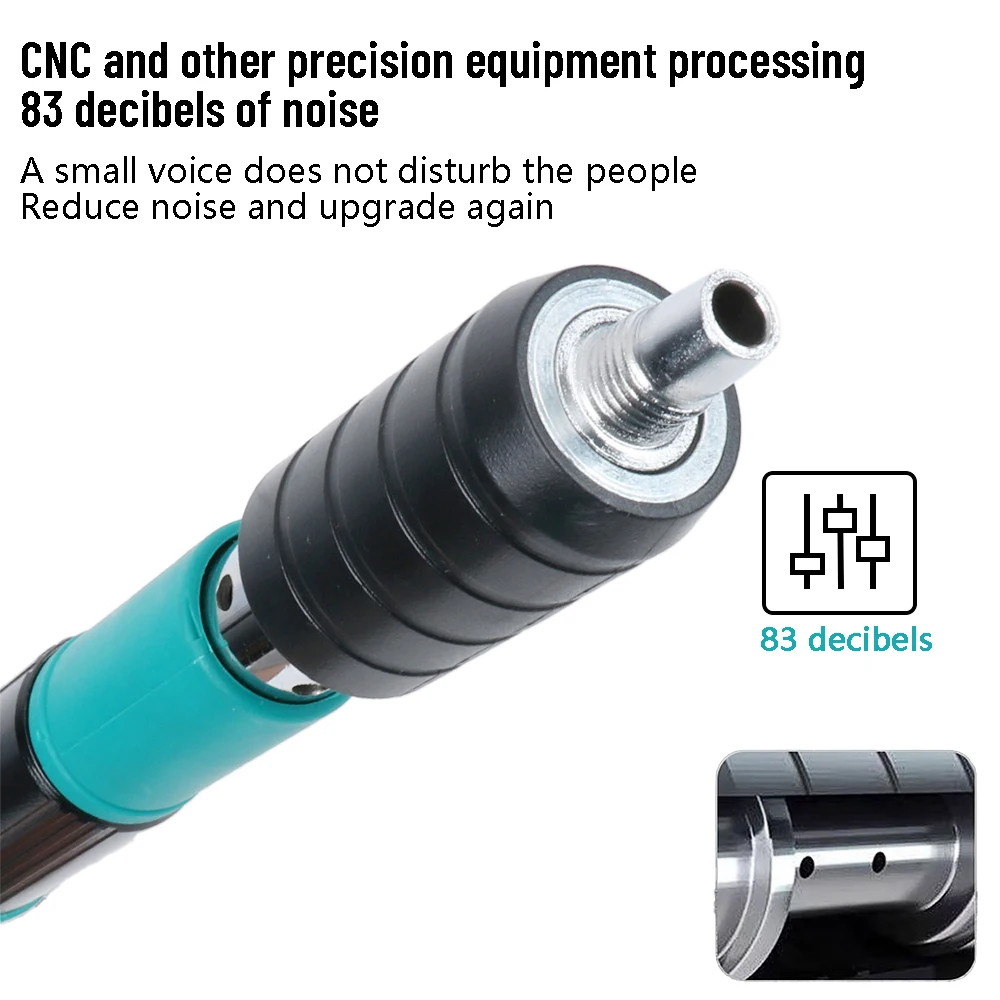

① After tightening and striking about 100 times, use a tool to remove the muffler sleeve and perform residue cleaning work.

② Standard maintenance interval: After tightening and striking about 200 times, use a tool to disassemble the retainer, clean the residue of each part, and wipe it off.

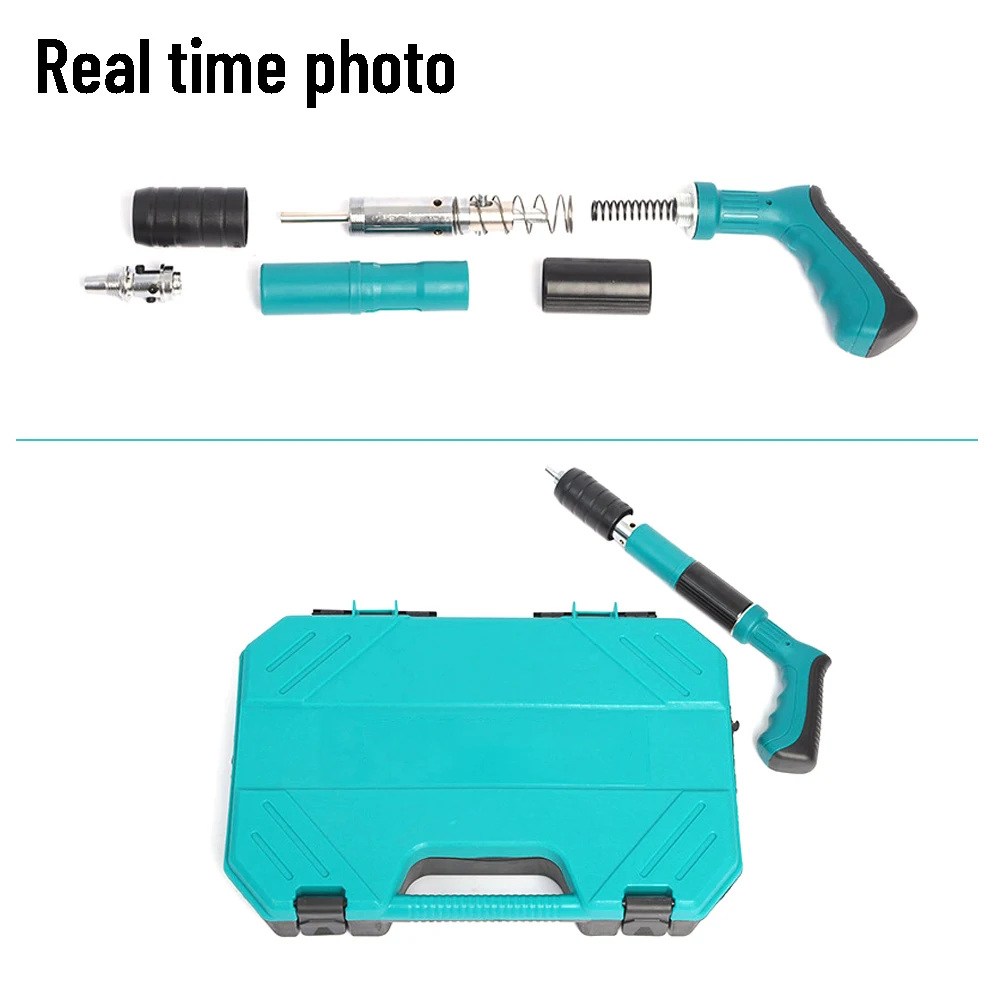

③ After each working day of use (regardless of whether the maintenance cycle has been reached or not), carry out the "Disassembly and Assembly" procedure and clean the internal and external parts of the retainer for maintenance.

In use maintenance

If the movable sleeve of the nail fixing device is found to be inflexible or inconvenient to retract during use, the components should be checked for damage. If it is damaged, it needs to be replaced in a timely manner. Damaged parts cannot be reinstalled on the nail fixing device for further use to prevent work safety accidents or damage to other parts. When the gun body overheats and affects its grip and use, it should be temporarily suspended and cooled before use.

Precautions for using gun nail guns

⑴：Before use, it is necessary to carefully read the instructions

⑵: It is strictly prohibited to press the top pipe with hands when the fixing device has nails

⑶: It is strictly prohibited to aim the nail gun into the nail hole at oneself or others

⑷: It is strictly prohibited to use both hands to simultaneously fasten and press the nail tube

⑸: It is strictly prohibited to not hold the sliding sleeve with one hand during nailing

⑹: It is strictly prohibited to use fixtures in places with flammable and explosive materials

⑺: Non staff and minors are not allowed to use this product

⑻: After the retainer is stopped, maintained, disassembled, and wiped, there should be no integral nails in the retainer

⑼: Users must wear protective equipment: protective gloves, impact resistant goggles, and construction caps

⑽: During the fastening operation of the fixture, the original dust cover must be used to prevent materials from flying on the working surface

⑾: Users must wear gloves, construction hats, goggles, and earmuffs

⑿: When using, try to place the nail driver perpendicular to the substrate plane and then push the nail driver with force

⒀: Remember to retract the nail every time you use it

⒁: Do not compress the nail tube with the palm of your hand during use

⒂: Under no circumstances is it allowed to align the nail mouth with oneself or others

⒃: It is recommended to disassemble and clean it once every 100 rounds of use. Generally, use lubricating oil for cleaning and maintenance to extend the service life

⒄: When the nail is not sounding, be careful not to directly touch any part of the nail body with your hands when retracting the nail. If there is any unexploded residual explosive shell that cannot be withdrawn, you can only use external objects to pull it out

⒅: Do not use nail drivers in flammable and explosive areas
